The Unsung Heroes of 35mm Photography – Part III (Manual Focus SLR Lenses) by Dan K
Definitely worth the wait. Dan K is back with another massively comprehensive guide to the unsung heroes of the film camera world. This time covering something that many have been waiting for. Lenses. This is a huge one, so get yourself a cup of something nice and enjoy.

This continues my series of articles on lesser-known camera equipment that performs like the legends of the era. Following on from the previous related article on budget SLRs (http://www.japancamerahunter.com/2013/11/unsung-heroes-35mm-photography-part-slrs-dan-k/), we’ll be looking at full-frame manual focus SLR lenses that can be bought for a budget of roughly US$100.

Strategy

My philosophy is to pick a camera system based around the lenses that I plan to use, rather than choose a camera body and then go look for lenses that fit it. Sure, a great body makes for easy focusing and efficient shooting, but the lens is the soul of the photo. The optics determines how the image is rendered. Usually, a set of lenses will account for the majority of expenditure on a system, so it pays to make the right choice from the outset.

This advice is doubly important for the photographer on a tight budget. Plan out your system acquisitions from the outset, insofar as the system should offer the lenses you need at prices you can afford, but don’t be afraid to take advantage of bargains you happen across.

An alternate strategy is to pick a universal mount like M42, T-mount, Adaptall 2 or one of the system mounts that are easy to adapt onto other bodies, such as Minolta MC/MD mount. There are some potential disadvantages regarding aperture control, but on the whole it works well and is sensible if you own bodies of multiple systems and are working with a limited budget.

Tamron Philosophy

When buying new gear, we are often told to avoid off-brand lenses and basic kit lenses because they don’t hold their value. The opposite holds true when money’s tight. We want lenses that are cheap and plentiful, with almost no rarity value. I’m not too worried about reliability either. Most manual lenses of this genre are simple and quite robust. There’s little to go wrong with a manual focus lens, other than obvious mould, element separation, cleaning marks, external physical damage, scratches, a sticky diaphragm, mechanical linkage, or a stuck focussing helicoids. It sounds a long list, but short compared to a stabilised autofocussing lens with electronic aperture control and nothing that is not readily apparent on physical inspection.

Indeed, you’d have to spend a lot of money to significantly upgrade from a lowly Minolta kit prime, simply because of the economies of scale in manufacturing by the million and their wide availability today. If you’re starting out I recommend you buy a prime lens with a focal length of approximately 50mm and master that focal length first. These lenses offer better sharpness, less aberration and better low light performance than wide or tele-focal lenses in the same price range. 50mm to 60mm focal length gives close to a 1:1 magnification on camera bodies of this era and price range. There is also something to be said for mastering the normal lens before learning to shoot lenses that make more of a statement with perspective.

Next, look for a wide lens somewhere in the 28mm to 35mm range and a portrait lens in the 75mm-85mm range. Ultrawide SLR lenses tend to be expensive and/or optically compromised and super-telephoto lenses put too much distance between the photographer and subject and are expensive and/or slow, possessing a small maximum aperture. You’ll get more use out of a 35mm and a 75mm lens instead.

You should pick focal lengths to achieve a certain kind of shot; you don’t need or want lenses covering every conceivable focal length between wide to tele. Distinct focal lengths are for determining perspective and to make a visual statement, not for saving the effort of moving a little closer or farther away to frame the subject; a mistake many zoom lens-packing novices make.

Speaking of zoom lenses, I feel zooms are underrated. A single zoom lens can replace two or three prime lenses, for example a 35mm wide lens, a 50mm normal lens and a 70mm short telephoto for portraiture. This is an important consideration if you’re on a tight budget. A zoom also saves time swapping lenses and may be essential for framing fast-moving action from a fixed vantage point, e.g. sports photography.

It’s more challenging to engineer a zoom lens than a typical prime lenses and some of the early attempts, such as the Nikon 43-86mm f/3.5 F, gave zoom lenses a bad name, being ridden with distortion, flare, ghosting and lacking in sharpness. Consequently, it has become pretty standard advice to steer clear of manual-focus zoom lenses and stick to primes. However, some of the better zooms are tack sharp, with minimal distortion and colour aberration and hold their own against comparable prime lenses in their price range.

Fast zoom lenses (e.g. f/2.8) with a constant widest aperture across the entire focal range are better regarded, but it’s not a universal truth; some variable aperture lenses are great and some constant aperture lenses are not. In general, later models with computer-calculated optics and multi-coatings are likely to outperform earlier, simpler lenses. I have also found that lenses in the range of 80-200mm tend to be sharper and more consistent than ones in the 35-75mm range and that the greater the zoom range and the more extreme the lens is at the wide end, the worse the lens performed overall. Again, these are generalisations and it makes sense to research individual lenses.

Don’t get too hung up on the maximum aperture specification. There’s not such a huge light capture difference between a 50mm f/1.2 and f/1.8 lens as to justify the price, nor does a 70-200mm f/2.8 deliver such narrow depth of field compared to an f/4 that it makes a far superior portrait lens. Other factors, such as the minimum close focus distance may be more relevant to the usefulness of a lens. There’s nothing worse than not being able to get a tight head and shoulders portrait with a long lens.

Other factors like having a filter thread that maintains orientation at all focus positions, a short-throw vs long-throw focus, or even the direction the focus scale turns set lenses apart, but are more a matter of personal preference. I won’t cover every detail here, because my objective is to list as many lenses here that I own and enjoy as possible. The idea is for me to throw out ideas based on my subjective experience and for you to look for more detailed individual reviews before purchasing.

Next, I’ll summarise the major lens systems and select some lenses that would suit the budget photographer. I can’t own every lens in the world, and opinions vary, so be sure to let us know in the comments whether you feel I have missed out a gem, or if you disagree with a lens’ inclusion.

Minolta (SR/MC/MD)
Minolta

Minolta primarily targeted the mass market and their ‘professional’ gear never had the same cachet as Leica, Contax, Nikon or Canon. Partly for this reason, Minolta’s manual-focus SLR system is my top recommendation for the photographer on a tight budget.

The first SLR system that I owned comprised a Minolta X-700 and a small handful of lenses. The only reason I switched was that I made the mistake of thinking it was too cheap to be any good and it took thousands of dollars of spending before I had assembled a high-end Nikon system that was significantly better in quality and utility. Now that I’ve learned that you can buy better gear, but you can’t buy a better eye, I wonder if it was money well spent. Whatever the answer, I still shoot my X-700 and X-500. I love the big finder and the quickness with which I can get the shot.

Before I get into individual lenses, here’s what you need to know about Minolta manual focus lens mount designations: It was originally called Minolta SR mount and sported auto aperture stop-down as the camera fires. “MC”-designated lenses add aperture-coupled metering for the SR-T, X-1, XE and later bodies. The next generation “MD” lenses added a tab to report the smallest aperture enabling shutter-priority mode in the XE-7 and Program mode in the X-700. Seeing as I use manual or aperture priority, I don’t much care whether my lens is MC or MD.

The 50mm kit primes (1.4 and 1.7) are pretty good, especially stopped down at f/4, but still good enough at wide apertures… and they are dead cheap. As it happens, I currently only own two f/1.4 lenses, having given away an f/1.7 recently. In any case, all these lenses perform better than my MC Rokkor-X 1:1.2 f=58mm costing many times as much, but is soft and produces strange swirly bokeh.

Minolta’s wide lenses cost a lot more than their normal primes, but then so do most wide SLR lenses. I originally bought the excellent but prices 28mm f/2, but a much more affordable option is the W.ROKKOR-SG 1:3.5 f=28mm, which is a bit more flare and distortion prone and necessitates stop-down metering through a small lever on the lens. I’d recommend the later MC version, rather than my SR version to avoid the need for step-down metering.

As for long lenses, I chose zooms over primes, because Minolta’s primes are legendary. Back in the 1970s, Leitz’s lovely M-mount system was losing out to Japanese SLRs and they didn’t have the specific technology needed to make their own. So Leitz decided to see if they could find a Japanese manufacturer to partner with. Their engineers were particularly impressed with Minolta’s lens performance and so, in the new tradition of “if you can’t beat them, re-badge them”, they started selling Minolta lenses and bodies as their own with minor modifications. Minolta continued making these lenses under their own brand. Some unverified accounts claim a high rejection rate of Minolta-made lenses and extensive modification, but the fact is, some of the Minolta-badged lens models really do perform to the level of the exalted Leica R system, and are comparable to even some of the better Leica R prime lenses. “Heresy!” cry the Leicaphiles, but professional testing I have heard about shows that they do. Regardless of snootiness, my casual testing confirms that they perform far better than they should for such a cheap lens.

My first pick is the Minolta MD ZOOM 75-200mm 1:4.5. I marginally prefer it to the later, but optically simpler 70-210mm 1:4, a stellar lens in its own right that also became the Vario-Elmar-R 1:4/70-210mm. This focal range makes an excellent portrait lens and a minimum focus distance of 1.2m means you can shoot a close up portrait. Note that I wouldn’t recommend any manual focus long-telephoto for children playing, or for sports, as it is not as fast reacting as a modern autofocus lens.

My second pick is the Minolta MD 35-70/3.5 Macro. I believe it was the non-macro version that was rebadged as the posh-sounding Leitz Vario-Elmar-R 1:3.5/35-70mm, but the macro version is at least as sharp and adds useful close focus and macro capabilities for about the same price. Close focus distance is 0.8m, but a further macro extension range allows 1:4 macro magnification. After a bit of comparison testing, I decided that I prefer it to the Minolta MD 28-70/3.5-4.5 which was also rebadged as the Leitz Vario-Elmar-R 1:3.5-4.5/28-70mm. I can live without the wider angle of view.

The only bad news is that both my lenses have rotating front elements, which can be a pain when using graduated filters and polarisers. I don’t use grad filters for anything but landscape photos, so it’s not an issue for me.

Nikon (F/AI)
Nikon

My personal favourite system is Nikon F/AI. If I chose to use just one system this would be it. I feel it has the best combination of selection, flexibility and quality. I advocate buying a great body and a couple of these cheap lenses, like a pancake and a tele and then take a step up in budget as you develop.

Nikon’s manual focus lenses span a long production history and come at all price levels. Many of the pre-AI era lenses are a good balance of price and image quality and render beautifully.  They will require conversion if you want to use them on later bodies and the conversion cost may push them beyond our notional $100 budget so if you plan to use camera bodies that take AI lenses, either buy AI/AI-S lenses or lenses that have already been converted.

One example that I picked up for about $75 is the venerable NIKKOR QC Auto 1:2.8 f=135mm AI. It’s sharp, with NIC anti-reflective coating and still takes a beautiful picture. I’d like it to focus a little closer; the minimum distance is 1.5m.

Nikon later made some cheaper lenses that are available for pocket change; these include compact prime lenses with smaller apertures. One such lens is the Nikkor 35mm 1:2.8 AI-S. It’s sharp with a pleasant character and minimal distortion.

Any photographer with financial constraints should consider the Series E lenses. “E” stands for Economy. They were even stripped of the prestigious “Nikkor” designation and simply state “Nikon Lens”. The Series E lenses are generally of plastic external construction, with metal mount, mechanics and filter thread. The optics were supposedly simpler than Nikkors and built to a tighter budget, but the primes perform far better than I had expected and have a build quality better than many competitors’ lenses. The Series E lenses are all AI or AI-S mount and don’t have the metal fork required to meter with pre-AI bodies.

My favourite is the Nikon Lens Series E 50mm 1:1.8 pancake lens. Intended as a cheap lens for the entry-level Nikon EM, it’s generally treated as a bit of a joke, but testing and experience shows it’s a killer lens. It’s dead sharp and almost distortion free, with just a little soft vignetting. This lens has a huge image circle; testing showed that it just about covers medium format Hasselblad X-Pan (65mmx24mm) panoramic. It even works better than a $3,000+ NOCT-NIKKOR 58mm 1:1.2 when adapted onto my Sony A7R, without noticeable ugly purple fringing.

Another is the Nikon Series E 100mm 1:2.8, a lovely telephoto portrait lens that outperforms even the 135/2.8. It’s tack sharp, with good contrast and smooth bokeh. This lens focuses down to 1m.

Nikon’s zooms are a mixed bunch. Some are as good as the best of the Minoltas and Leicas, but some one or two are even cringeworthy. I wouldn’t describe my Zoom-NIKKOR 35-70mm 1:3.5-4.8 as being especially sharp, or totally distortion free at the wide end, but overall it’s reasonably good and very light and compact. A useful close focus distance of 0.5m gives the possibility of tight portraits. There is a macro setting down to 0.35m.  By comparison, my (then) professional-grade Zoom-Nikkor 35-70mm 1:3.5 AI is twice the size and weight, has twice the minimum focal distance and costs a lot more than twice the price. Compare their sizes in the photo above. The f/3.5-4.8 is the bottom centre-left and the f/3.5 is to its immediate right. It’s a matter of budget and priorities; I use the cheap lens more. If you get the choice, the earlier Zoom-NIKKOR 35-70mm 1:3.5-4.5 is about the same price as my 1:3.5-4.8 and a better lens.

After my happy experiences with my Series E lenses, it didn’t surprise me to see that my latest purchase, a Nikon Lens Series E 70-210mm 1:4 turned out to be a lovely lens. It’s beautifully put together, without a hint of its “economy” label. Optically, it’s on a par with the Minolta MD ZOOM 75-200mm 1:4.5 and perhaps a little more vibrant.

I think Nikon is a great choice at all budgets, from the entry level, through intermediate and up to premium price levels. Therefore I would recommend Nikon to low budget photographers with aspirations of progressively trading up later.

Canon (FD)

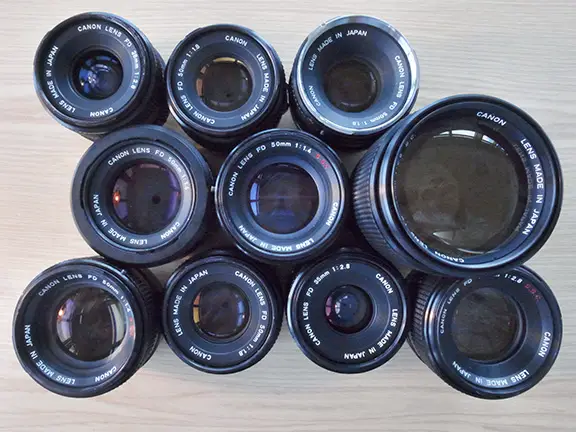

Canon

Canon made manual-focus cameras and lenses in their FL mount system from 1964 to 1971 and was then replaced by the similar FD mount which added diaphragm control permitting shutter priority auto-exposure and program mode. FD mount remained in production till around 1987-1992 when it was itself replaced by the auto-focusing EF mount.

There are some compatibility issues that you need to be aware of. FL and FD lenses employ the same breech-lock and shutter-linkage and consequently FD mount bodies can use FL lenses, albeit with stopped-down metering. I prefer the later bodies and seeing as FL lenses don’t seem to be much cheaper than FD lenses these days, I’ve chosen FD over FL. It’s no great limitation as Canon produced one of the most comprehensive systems of lenses, bodies and accessories, satisfying every need and budget.

Note that FL and FD lenses aren’t adaptable onto modern EOS (EF-Mount) bodies, nor to my knowledge any other SLR mount. Partly for this reason, Canon FD lenses and bodies are generally cheaper than their Nikon equivalent and so are worthy of consideration for this article. This cheapness certainly doesn’t extend to their professional-grade “L” series lenses, which aren’t much cheaper than the modern EF mount equivalent and consequently, I’ve always balked at buying them.

While I have found a few lenses that are both cheap and meet my image quality requirements I haven’t come across many and I would be grateful for your recommendations in the Comments section. The good news is sometimes the very cheapest lenses render more gracefully than more expensive versions of the same focal length.

The Canon FD 50mm 1:1.8 is probably the most affordable of the bunch and often comes bundled for free with a body. I have both silver and black versions. Silver means that the lens has a silver breech lock ring. The black version is the later lens. They are slightly smaller, but roughly comparable to the likewise common Canon Lens FD 50mm 1:1.4 and its heftier, elder brother, the Canon Lens FD 50mm 1:1.4 S.S.C.. All four lenses are technically good and very similar in performance and look; they are sharp and contrasty without distortion and good colour rendition. The bokeh leaves me slightly queezy on fine grain film and digital, but is a lot less extreme than the more expensive FD 55mm 1:1.2 SSC (non-aspheric). If you like the FD bodies these kit 50mm primes are obvious choices.

Finding cheap but high quality wides is always a challenge, and Canon Lens FD 28mm 1:2.8 was a very popular lens, being compact, sharp and well corrected for spherical aberration. There is only slight barrel distortion and some tolerable brightness drop off in the corners.

I have recently been using a Canon Lens FD mm 135mm 1:3.5 S.C. as an alternate portrait lens to my Canon Lens FD 100mm 1:2.8 S.S.C., which at $130 falls a little beyond our arbitrary target budget. I love the hair-splittingly sharp 100mm and to be honest, I can’t reliably distinguish between photographs taken with the two lenses. The 100mm’s main advantage is its closer minimum focal distance of 1m vs 1.5m.

To sum up, Canon’s manual focus SLR system is frankly not my favourite, despite my long and history of using their EOS system and my passion for collecting their rangefinders. However, most people don’t need much more than an AE-1 Program body, a kit 50mm lens and maybe one specialist lenses, in which case, they’d not regret the purchase. Legions of photography and journalism students cut their teeth on this combination.

Konica (AR)

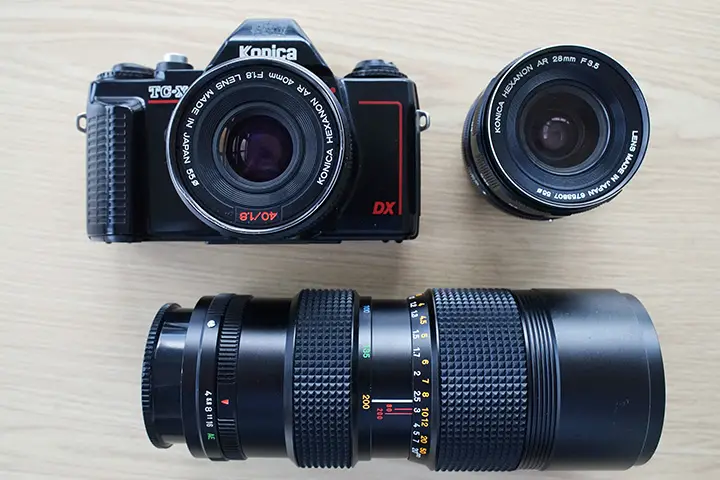

Konica

Konica AR lenses are highly underrated, but there aren’t many good Konica Autoreflex bodies. In addition, they have a short flange-focal distance, so they’re not so popular as it’s hard to adapt them onto other SLR lens mounts. Of course they work fine on a full-frame mirrorless camera, but if you can afford one of those, you can probably afford better than a Konica lens. Also note that Konica AR lenses won’t work on earlier Konica F bodies.

I originally bought my HEXANON AR 40mm F1.8 to go with my TC-X camera body. The small pancake form-factor complements the small SLR body and, as I intended it to be my only lens, the 40mm focal length is a good compromise between a normal lens and a wide. It’s an endearingly soulful lens, which means it’s not terribly sharp wide open and has dark corners, but pleasant rendering. By somewhere between f/2.8 and f/4 the lens sharpens up considerably. I also hear the 50mm is a sharper lens all round.

I added a HEXANON AR 28mm F3.5, which is fairly sharp for a 28mm SLR lens and without too much distortion. However the corners are pretty dark when shot wide open. I am told the late model is a relabelled Hexar; perhaps the first model is better.

At the long end, I bought a UC ZOOM-HEXANON AR 80-200mm F4, which is a glorious tele zoom lens. I overpaid a little for mine, but they’re worth about $30-40 in prime condition on fleabay. The lens is sharp, contrasty and undistorted. The close focus distance is a very useful 0.7m. The downside is the front element rotates, like many zoom lenses of the era. Also, the lens has a bad reputation for flare, but I can’t seem to replicate it on my specimen. If you have the choice, go for the earlier f/3.5 model.

All these are Hexanon lenses. In later years, Konica made some budget lenses labelled Hexar AR. The Hexanon versions are better optically and mechanically and given that Hexanon lenses are so cheap, I saw no reason to look for Hexar lenses. If do come across one, I’d love to hear how it compares to the Hexanons. I confess to being a relative newcomer to Konicas and am still looking for lenses to round out the system. Among the Hexanons that I haven’t tried, the 21/4 supposedly beats my beloved NIKKOR 20/3.5 UD and the 35/2.8 and 35/2 are world-class. The 135/3.2 is another lens that I’m looking out for, being the best of the Konica portrait lenses.

To sum up Konica lenses, I don’t think there’s a cheaper way to put together a good system of several good quality lenses, but for street photography I’d rather have one or two Series E lenses and a Nikon body than a bag full of Hexanons.

Contax (C/Y)
Contax

I think Nikon has better SLR bodies, but I adore Leica R and Contax glass. These lenses are well built and the image quality is top-notch. I feel they offer good value for money in today’s market, but I wouldn’t call any of them ‘budget’ lenses and won’t be reviewing them in this article.

However, Contax SLRs were made under a joint venture between Zeiss and Kyocera and Kyocera also manufactured and sold bodies and lenses with the same mount under the Yashica brand and the standard is known as Contax/Yashica (C/Y). Yashica gear was pitched at a lower price point. Opinions on image quality vary. My personal opinion is that they range from the mediocre to the reasonably good.

Yashica DSB 50mm 1:1.9. DSB stands for bargain basement. It has plastic construction, single coating and is a bit flare prone. It’s not as bad as on-line research would leave you to believe. It’s comparable in sharpness to my Contax Tessar 45mm 1:2.8 at f/2.8 and even wide open, but then the Contax pancake isn’t the best they made.

Yashica ML 50mm 1:2. The ML lenses are generally metal construction, are multi-coated and fetch a little more. Like the DSB, this lens also has a six blade diaphragm and to be honest, I can’t tell the results apart from the DSB.

Yashica ML 135mm 1:2.8. This lens has a deservedly good reputation, being sharp and flattering. It’s not quite a Contax Sonnar, but this would be the one I’d keep out of all those considered here. Minimum focal distance is 1.5m.

I also have a Yashica ML ZOOM 80-200mm 1:4 and honestly, it’s no Vario Sonnar T*, but not so far behind some the other zoom lenses listed here. My early dissatisfaction with this lens is probably due to focus breathing, which is pretty bad on this lens; you’ll need to refocus when you change the focal length. Minimum focal distance is a distant 1.9m.

To summarise, Contax are expensive. Be skeptical of Yashica lenses and do your research. Unless you already have a Contax body, I’d consider another mount until funds permit.

Pentax (K)

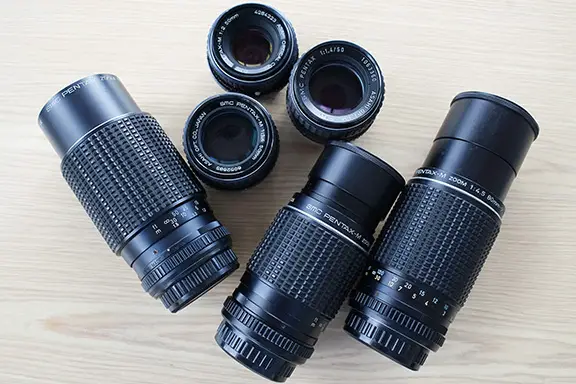

Pentax

Pentax’s bayonet mount is known as “Pentax K”, although that covers several generations of Pentax mount. We’ll be considering the three manual focus generations: K, M and A. The first two types, K and M, cannot have set their apertures automatically and are very competitively priced. The third generation of SMC PENTAX-A lenses are the last and best of the manual focus lenses and have a green A on the aperture scale to show that they can work in shutter priority mode. They are also more expensive, and I don’t need shutter priority, so I stuck to the earlier generations.  Incidentally, “SMC” stands for Super Multi Coating which is used to reduce lens flare.

SMC PENTAX 1:1.7 50mm. This is sharp with good contrast and colour rendition and gentle, unobtrusive bokeh. There is some vignetting wide open, but it is progressive and only serves to focus the viewer’s attention on the subject. Alternately, the smaller SMC PENTAX-M 1:2 50mm is a good pairing with the small Pentax SLR bodies and has the reputation of being even sharper than its Pentax-A successor. If you can stretch to $150, you can afford the excellent ASAHI OPT. CO. SMC PENTAX 1:1.4 50mm, but for a 50mm this is a surprisingly high price. It just goes to illustrate how expensive Pentax lenses can get if you are keen on the more sought-after lenses.

For a while, the only wide that I owned was the SMC PENTAX-M 1:2.8 28mm; wide open, it’s moderately sharp in the centre with gloomy corners. Stopped down a stop or two and it’s extremely good, as you’d expect. I recently managed to pick up a SMC PENTAX-M 1:3.5 28mm for even less than the f/2.8 and many say that this lens is superior to the faster lens in terms of flare resistance, contrast, colour rendering, and corner sharpness. I haven’t really shot with it enough to know, but it seems to be at least as sharp as its sister.

Back in the day, Pentax zooms were very desireable. The three I have are the SMC PENTAX Zoom 1:4 45-125mm, SMC PENTAX-M Zoom 1:4.5 80-200mm and SMC PENTAX-M Zoom 1:4 75-150mm. Minimum focal distances are 1.2m for the 75-150mm, 1.5m for the 45-125mm and 1.6m for the 80-200mm. All are sharp and contrasty even wide open, with low distortion or aberration. Optically, my preference is for the 75-150mm over the 80-200mm and it also complements the 50mm normal lens better than the 45-125mm. All in all, I consider the Minoltas a little better overall, both optically and in handling.

Olympus (OM)

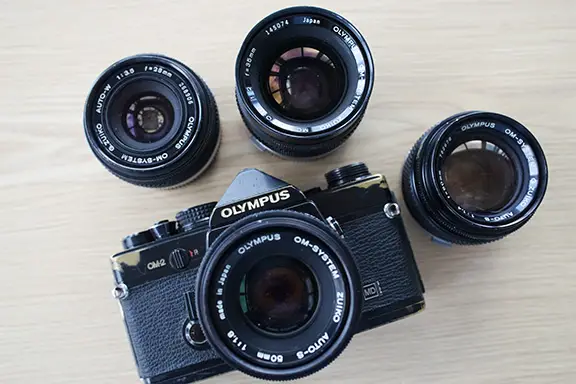

Olympus

Olympus also made fine lenses, if you find the Olympus OM bodies to your liking. These are slightly different, with a dial on the lens mount controlling shutter speed. I find this a bit fiddly, especially with the pancake lens, but some people prefer it this way. As always the kit primes are cheap and plentiful.

These kit primes are the Olympus OM Zuiko Auto-S 50mm 1.4 and 1.8. The smaller but slower 1.8 is all I need. I find the bokeh of the faster lens a bit “out of control” when shot wide open and close up, even more than a Zeiss Biotar.

I have two 28mm lenses. Of the two, I would not recommend the Olympus OM-SYSTEM ZUIKO 1:2 f=28mm. For a start, it breaks the budget at $380, but the main reason is it adds little over the Olympus OM-SYSTEM ZUIKO 1:3.5 f=28mm. Yes, the cheaper lens is more than a stop slower, but when shot wide open, the faster lens has some fairly serious vignette.

M42 × 1 mm Standard (M42)
M42

I’d be remiss to discuss great value for money lenses without covering the excellent M42x1mm mount. This was pioneered by Contax/Praktica but was used by many brands, becoming a common standard. I have many normal primes in M42. Some of the most sought-after include:

Carl Zeiss Jena Tessar 2.8/50. I have both the silver and zebra versions. I prefer the zebra’s shorter 35cm minimum focal distance, stop down system and compactness, but can’t see any optical difference except the silver seems to have a little more vignette. Technically worse, it can aid composition. Conventional wisdom is to look instead for the multi-coated versions.

Helios-44M-4 2/58. This is more or less a direct soviet copy of the Carl Zeiss Jena Biotar. Testing on a Sony A7R yielded very similar results. Both lenses are sharp even wide open, but consider this a special-effects lens. Sought for its characteristic optical vignetting supposedly gives swirly bokeh, which I have not seen. Instead, I see good centre sharpness, drifting away into peripheral softness and progressive darkening shot wide open, like an extreme version of the Elmar 50/3.5.

Pentacon Auto 1.8/50 multi coating. Another Zeiss lens, but a more modern build. Sharp and contrasty.

Pentax Super Takumar 1.8/55 and SMC. Both sharp and charming lenses, these offer 45cm close focusing and auto-manual iris control. The SMC version has a little more contrast and warmer colour, but not a big difference.

Chinon 50mm f/2.8. I find this lens to be superb. It’s sharp as the devil, with great contrast and colour and buttery bokeh. If f/2.8 is enough for you, then this would be a killer choice.

Pentax SMC Takumar 1:3.5/135. This is a compact telephoto lens that takes great portraits. Like the Chinon, it’s hard to fault. Minimum focal distance is 1.5m.

Auto Chinon 28mm 2.8. I don’t have many wide lenses in M42. Although it was highly recommended by some of my experienced friends, I would describe it as streets behind the Minolta 28/2 in sharpness, contrast and corner illumination. However, distortion isn’t bad.

There are still a few lenses I’m looking for, including the Takumar 35/3.5 and maybe one of the Takumar 85mm lenses. Both would be excellent candidates for good, cheap lenses.

Tamron (T and T2)
Tamron

The Tamron T-mount was another 42mm screw mount and is similar to M42, but alas, incompatible. I have a couple of these, but nothing impressive enough to include here. These lenses usually have a dial to open and close the aperture manually, an extra step that slows my shooting.

I prefer the Tamron lenses in the later Adaptall 2 (T2) mount because it interfaces with the camera body’s mechanism to automatically stop down before shooting. The T2 lenses that I chose to include here are:

Tamron SP 17mm 1:3.5. The only ultrawide lens included here, this lens has a pronounced, strangely non-linear distortion and a heavy progressive vignette, strongly reminiscent of the Russar+ that Lomography is currently touting for $650, but at a fraction of the price and in a far more adaptable T2 mount. While I would not use it for architectural images, it’s great if you want a characterful ultra-wide. It’s also above our budget at around $150, but it’s rare to find a full frame lens this wide at this price.

Tamron SP 35-80 2.8-3.8 CF Macro. The kind of unassuming lens you might find neglected in a bargain bin, it’s the one of the very best manual focus zooms ever made by a generic lensmaker. Minimum focal distance is 1m, but between about 60mm to 80mm, it can focus as close as 0.27m. With good macro performance corner to corner, it focuses to 27cm from the film plane. Racked out at 80mm, it’s a beautiful portrait lens; at 35mm, there’s just a little barrell distortion. Fairly flare resistant. Performance is comparable to the Minolta and only just behind the best of the contemporaneous Nikkor zooms. T2 mount means it can be adapted onto most cameras.

Vivitar
Vivitar Philosophy

Vivitar are another third-party lens brand, but they took a different approach to Tamron, making their lenses in a variety of mounts: Pentax, Canon, Nikon, Minolta and Olympus, so you will probably find one in your mount of choice. In addition, Vivitar lenses were not made by Vivitar themselves, but manufacturing was subcontracted to one of 16 or more optical specialists, including Olympus, Cosina and Schneider Optik. If you’re interested, CameraQuest.com has a table that you can use to look up the maker from the serial number.

Some of Vivitar’s lenses are of low quality, but Vivitar made introduced the Series 1 in the 1970s as their premium quality range. Their computer-designed optics were intended to compete with the best of camera manufacturers’ own lenses, which they often outperformed. At the same time they undercut both the top camera brands the other top third party manufacturers like Angineux.

Probably the most famous of these lenses is the Vivitar Series 1 70-210mm 1:2.8-4.0 VMC MACRO FOCUSING ZOOM. Minimum focal distance is a very tight 0.8m at all focal lengths. Mine in MD mount and has a serial number starting “28”, indicating that it was made by Komine.

My other favourite lens is the Vivitar Series 1 100-500mm 1:5.6-8.0 VMC MACRO FOCUSING ZOOM manufactured by Cosina. It’s surprisingly light for it’s size. At 100mm, it’s as big as a Pringle’s can; at 500mm, it’s almost twice as long. It’s more of a telescope than a portrait lens, with a minimum focal distance of 3m. It renders beautifully though.
I also own a Vivitar Series 1 24-70mm 1:3.8-4.8 VMC MACRO FOCUSING ZOOM. It’s one of the very first manual focus SLR lenses that I ever bought and I used it together with a 50mm Minolta prime lens and it covered pretty much every need. Today, the Minolta 35-70 fills that role as the 24-70 isn’t quite up to the quality of the other two Vivitar lenses.

Unfortunately not all Vivitar Series 1 lenses are gems. Vivitar later sold some pretty rubbish lenses under the Series 1 label. Avoid the later models and anything with a slow f/4.d-f/5.6 maximum aperture.

Conclusion

Spectacular lenses are within your grasp, even if you are on a tight budget. Choose your system wisely, bearing in mind whether you intend to transition to a new system later, or continue to grow organically from your initial purchase. Remember that my preferences for one system over another may not apply to lenses of a higher price range, except where I have intonated. If you have any questions, raise them below and we’ll all have a crack at answering them.

About The Author

Dan K is a life-long enthusiast photographer. He celebrated his return to film by collecting just about every quality camera and lens that he could lay his hands upon. Along the way he has developed an encyclopaedic knowledge of film cameras and film processing. Follow him on twitter for a humorous look at photography techniques and technology from all eras. Follow him on Tumblr for his images, journey of photographic discovers and a generous helping of gear-porn.

Tumblr
Twitter
He was also on ‘In your bag’
You can read all of Dan’s other articles here

Text and images © Dan K. All rights reserved.

Appendix: List of Recommended Lenses

Value estimates are based on a recent survey of Hong Kong camera stores for a lens in clean optical condition; but in ‘user’ cosmetic condition.
Canon (FD)
Canon Lens FD 28mm 1:2.8 $95
Canon Lens FD 50mm 1:1.8 (silver and black versions) $50
Canon Lens FD mm 50mm 1:1.4 $85
Canon Lens FD mm 50mm 1:1.4 S.S.C. $95
Canon Lens FD mm 135mm 1:3.5 S.C. $90

Contax/ Yashica (C/Y)
Yashica ML 28mm 12:2.8 $100
Yashica ML 50mm 1:2 $50
Yashica DSB 50mm 1:1.9 $50
Yashica ML ZOOM 80-200mm 1:4 $60
Yashica ML 135mm 1:2.8 $100

Konica (AR)
KONICA HEXANON AR 28mm F3.5 $60
KONICA HEXANON AR 40mm F1.8 $60
KONICA UC ZOOM-HEXANON AR 80-200mm F4 $100
KONICA UC ZOOM-HEXANON AR 80-200mm F3.5 $100

Minolta (SR/MC/MD)
Minolta W.ROKKOR-SG 1:3.5 f=28mm $60
Minolta MD Rokkor-X 1:1.4 f=50mm $60
Minolta MC Rokkor-PG 1:1.4 f=50mm $75
Minolta MD 35-70/3.5 Macro $75
Minolta MD ZOOM 75-200mm 1:4.5 $100

M42
AUTO CHINON 1:2.8 f=28mm $50
Carl Zeiss Jena Tessar 2.8/50 “zebra” $60
Carl Zeiss Jena Tessar 2.8/50 “silver” $60
CHINON 1:2.8 f=50mm $60
PENTACON auto 1.8/50 MULTI COATING $60
ASAHI OPT. CO. Super-Takumar 1:1.8/55 $50
ASAHI OPT. CO. Super-Multi-Coated Takumar 1:1.8/55 $50
HELIOS-44M-4 2/58 $60
ASAHI OPT. CO. Super-Multi-Coated Takumar 1:3.5/135 $60

Nikon (non-AI, AI, AI-S)
NIKKOR 35mm 1:2.8 AI-S $60
Nikon Lens Series E 50mm 1:1.8 $60
Nikon Lens Series E 100mm 1:2.8 $90
NIKKOR QC Auto 1:2.8 f=135mm AI $90
Zoom-NIKKOR 35-70mm 1:3.5-4.8 $50
Zoom-NIKKOR 35-70mm 1:3.5-4.5 $50
Nikon Lens Series E 70-210mm 1:4 $90

Olympus (OM)
Olympus OM-SYSTEM ZUIKO 1:3.5 f=28mm $65
Olympus OM-SYSTEM ZUIKO AUTO-S 1:1.8 f=50mm $75
Olympus OM-SYSTEM G.ZUIKO AUTO-S 1:1.4 f=50mm $90

Pentax (PK)
ASAHI OPT. CO. SMC PENTAX-M 1:3.5 28mm $65
ASAHI OPT. CO. SMC PENTAX-M 1:2.8 28mm $100
ASAHI OPT. CO. SMC PENTAX-M 1:2 50mm $65
ASAHI OPT. CO. SMC PENTAX Zoom 1:4 45-125mm $100
ASAHI OPT. CO. SMC PENTAX -M Zoom 1:4 75-150mm $75
ASAHI OPT. CO. SMC PENTAX -M Zoom 1:4.5 80-200mm $100

Tamron
TAMRON SP 17mm 1:3.5 $150
TAMRON SP 1:2.8-3.8 35-80mm CF MACRO $50

Vivitar Series 1 (MD)
Vivitar Series 1 24-70mm 1:3.8-4.8 VMC MACRO FOCUSING ZOOM $90
Vivitar Series 1 70-210mm 1:2.8-4.0 VMC MACRO FOCUSING ZOOM $150
Vivitar Series 1 100-500mm 1:5.6-8.0 VMC MACRO FOCUSING ZOOM $150
